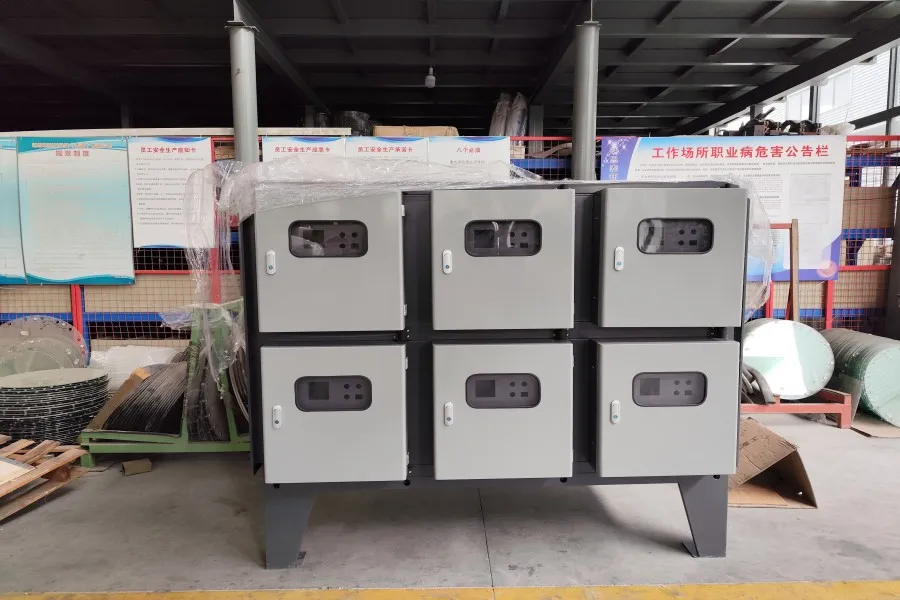

Electrostatic Oil Fume Purifier

Commercial & Industrial High-Efficiency Oil Mist & Smoke Collection Systems

Our Electrostatic Oil Fume Purifiers utilize advanced dual-stage Electrostatic Precipitator (ESP) technology to capture and eliminate heavy cooking oil fumes, industrial oil mists, and fine smoke particles. Designed for commercial kitchens and high-speed CNC machining facilities, these purifiers deliver high purification efficiency and clear, smoke-free exhaust.

Key Features & Advantages

• High Purification Efficiency: Dual-stage ionizer/collector cell geometry achieves oil fume and smoke removal efficiencies up to 95%–98%+.
• Low Operating Resistance: Open-structure electric field cells allow smooth airflow with minimal pressure loss, maintaining hood exhaust efficiency.
• Washable Aluminum Cell Modules: Precision-extruded aluminum alloy collector cells are durable, corrosion-resistant, and easily washable for long service life.
• Smart Power Supply Protection: High-frequency solid-state power supply with automatic arc suppression, short-circuit protection, and thermal shutdown safety controls.
• Modularity for Large Airflows: Stackable modular design allows easy parallel or series connection to handle large exhaust volumes.

Working Principle

1. Pre-Filtration: Large oil droplets and mechanical particulates are caught by a washable stainless steel mesh pre-filter.
2. Ionization Stage: Fine oil mist and smoke particles pass through a high-voltage ionization zone (12kV+), receiving a strong positive electrical charge.
3. Collection Stage: Charged particles enter a low-voltage collection zone (6kV), where they are attracted to and trapped on grounded parallel aluminum plates.
4. Oil Drainage: Accumulated oil drips off the smooth plates into a bottom collection sump, leaving clean air to exit the discharge.

Technical Specifications

Typical Applications

• Commercial Kitchen Ventilation (Hotels, Restaurants, Food Courts)
• Food Processing & Deep Frying Production Lines
• CNC Machining, Lathes, & Metal Stamping Oil Mist Collection
• Heat Treatment, Quenching, & Cold Heading Processes
• Textile Stenter Frame & PVC Leather Exhaust Purification

Request a Product Quote

Tell us your required airflow capacity (m³/h or CFM) and application type to receive a technical configuration and quotation.
