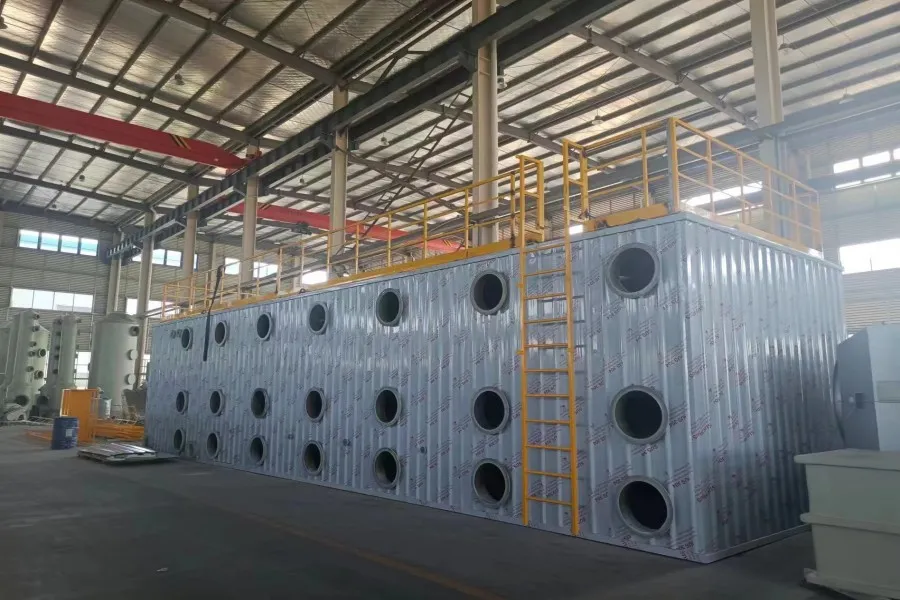

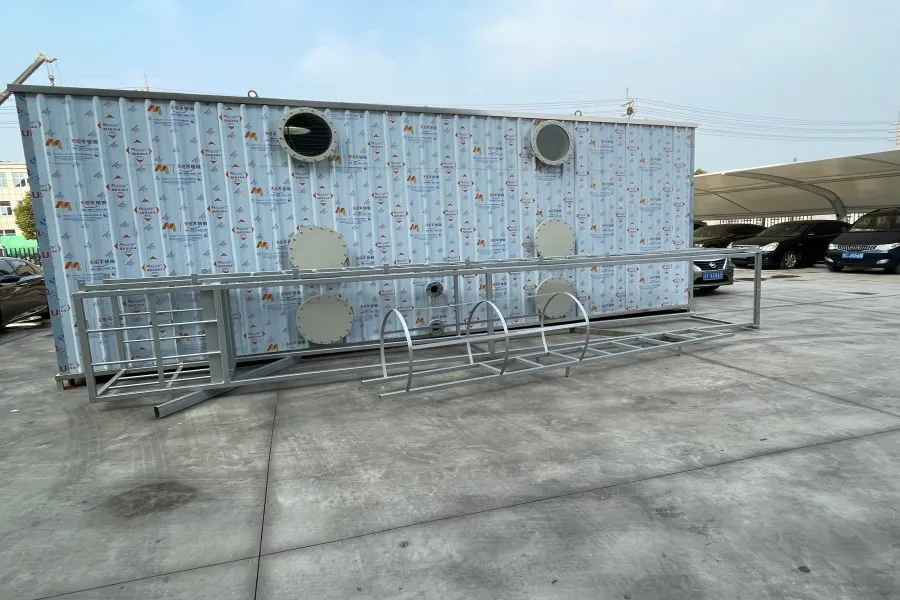

Biological Deodorization Box
Biological deodorization equipment for continuous odor treatment in municipal and industrial environments.
Product Details
Eco-Friendly Eco-Biofiltration Systems for Industrial Odor Abatement
Our Biological Deodorization Boxes (Biofilters) deliver an eco-friendly, sustainable, and highly effective solution for neutralizing odorous gas compounds and volatile organic contaminants. By leveraging natural microbial degradation inside a controlled bio-media environment, these systems convert harmful reduced-sulfur and nitrogen compounds into odorless inorganic byproducts without generating secondary chemical waste.
Key Features & Advantages
- Chemical-Free Operation: Eliminates the need for expensive chemical reagents, reducing operational hazards and recurring chemical purchase costs.
- High Hydrogen Sulfide & Ammonia Removal: Achieves up to 99% removal efficiency for H2S, mercaptans, amines, ammonia, and VOC odor compounds.
- Long-Life Inorganic/Organic Bio-Media: Engineered bio-packing media provides high moisture retention, structural stability, and low degradation over multi-year operational cycles.
- Integrated Humidification & Irrigation: Automatic water/nutrient spraying system maintains optimal temperature and moisture levels for healthy microbial colonies.
- Corrosion-Proof Housing: Constructed using premium FRP or PP materials to handle highly acidic and humid bio-reaction environments.
Working Principle
- Pre-Conditioning: Raw odorous air enters a humidification section where water sprays saturate the gas stream to 100% relative humidity and remove particulates.
- Biofiltration Bed: The saturated gas passes through a specialized bio-packing layer populated with active microbial cultures.
- Biological Degradation: Microorganisms absorb gas-phase contaminants into their liquid biofilm and metabolize them into CO2, H2O, and mineral salts.
- Clean Exhaust: Purified, odorless air passes through mist separation before being discharged safely into the atmosphere.
Technical Specifications
| Parameter | Specifications |
| Structure Material | FRP (Fiberglass) / PP / Insulated Composite Panels |
| Airflow Capacity | 1,000 to 100,000 m³/h |
| Odor Removal Efficiency | 90% to 99% (H2S, Mercaptans, VOCs) |
| Bio-Media Type | Composite Biological Ring / Volcanic Rock / Bark-Fiber Matrix |
| Media Service Life | 3 to 5+ Years (Depending on media selected) |
| Control System | Automated PLC moisture and nutrient dosing control |
Typical Applications
- Municipal Wastewater Treatment Plants (Pumping Stations, Sludge Dewatering)
- Food & Beverage Processing & Rendering Facilities
- Municipal Solid Waste (MSW) Composting & Transfer Stations
- Livestock Breeding & Animal Byproduct Processing
- Paper Mills & Chemical Odor Control
Request an Engineering Proposal
Provide your airflow parameters, temperature, and target odor concentration (e.g., H2S ppm) to receive a biological deodorization proposal.
